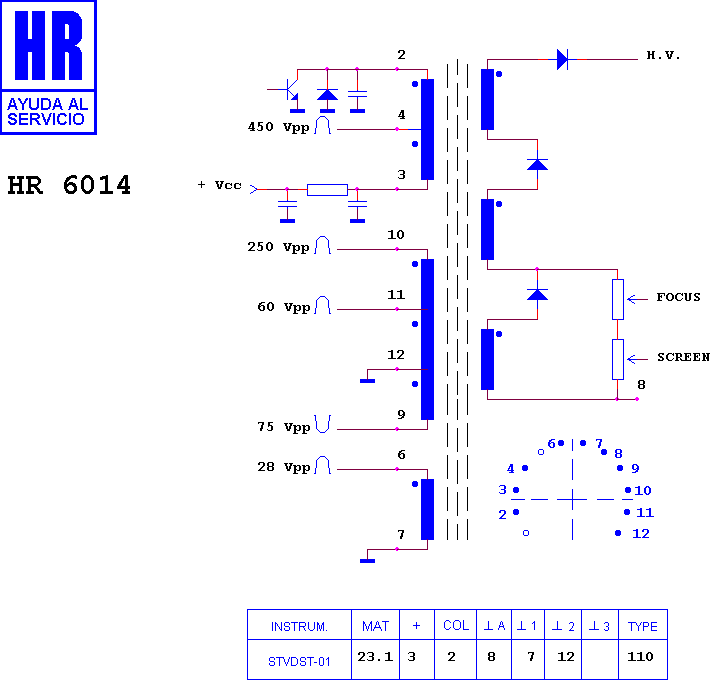

HR 6014

type ST · family 1BP1 · 23.1 kV maximum anode voltage · 110° deflection · 3 windings · 356 g

Manufacturer equivalents (1)

37019.00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6048 · HR 7994 · HR 6575

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
