HR 6048

type ST · family 1BP1 · 23.7 kV maximum anode voltage · 110° deflection · 4 windings · 358 g

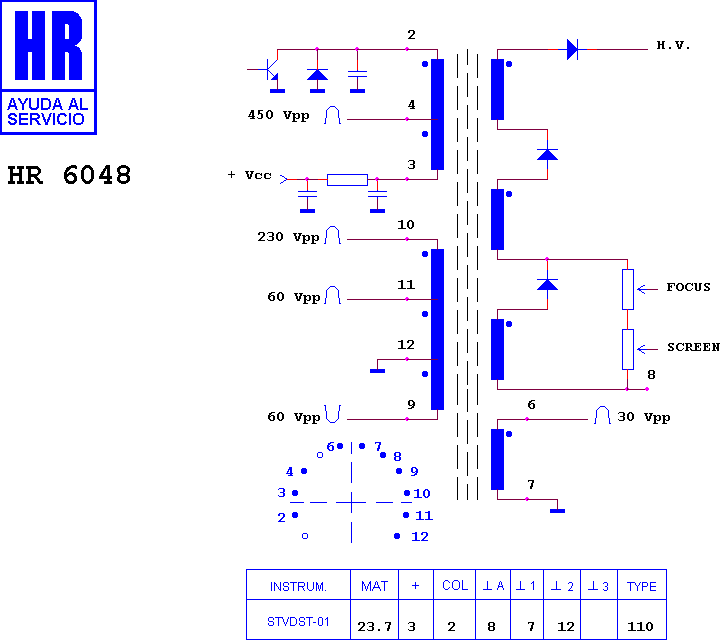

Schematic diagram for HR 6048
schematic
Schematic diagram for HR 6048
schematic (archived)

Manufacturer equivalents (1)

HR6048

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6014 · HR 7994

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
