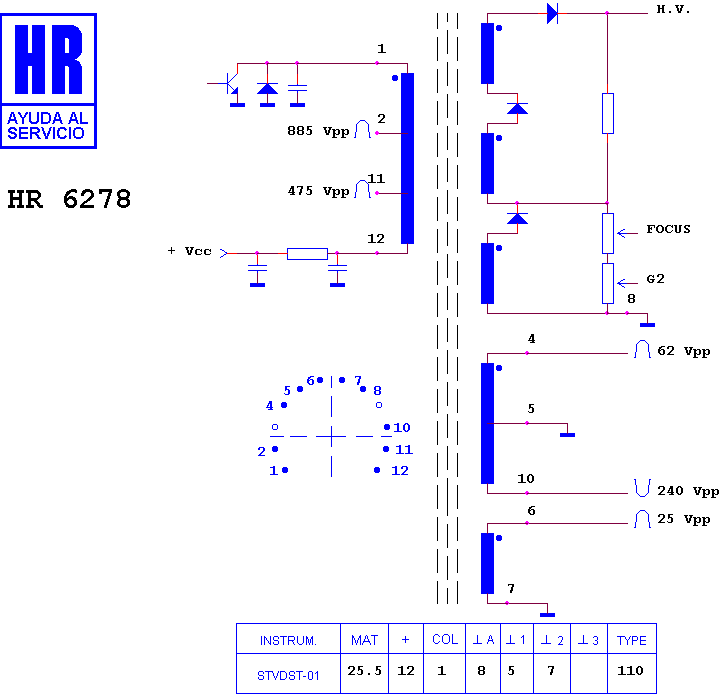

HR 6278

type ST · family 1BP1 · 25.5 kV maximum anode voltage · 110° deflection · 3 windings · 425 g

Manufacturer equivalents (11)

003331110 · D 272/37 · D 372/37 · FAT 30011 · KN 30011 N · KN 35301 N · KN 35333 N · KN30011 · ME/6369-00 · RO 096 · TR 096

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6533 · HR 7349 · HR 7193

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

ORION CTV 025 A · ORION CTV 025 M

Search this part in the full database
