HR 6533

type ST · family 1BP1 · 26.1 kV maximum anode voltage · 110° deflection · 4 windings · 394 g

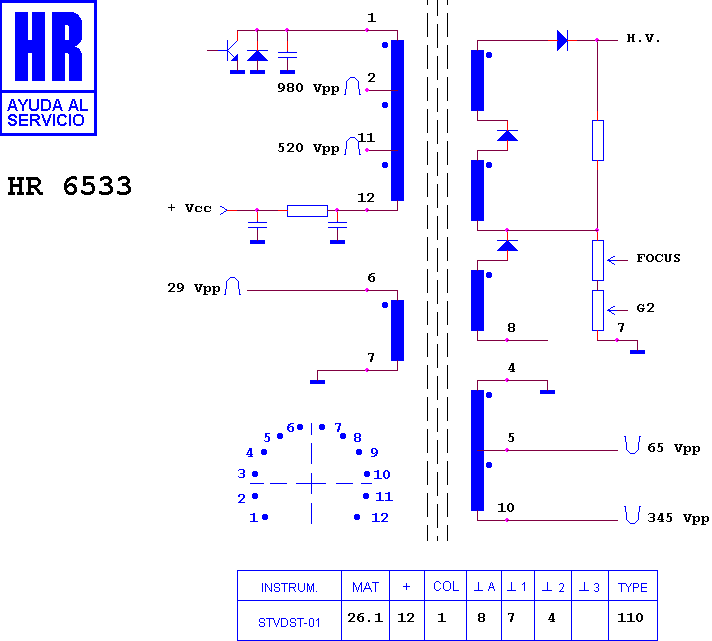

Schematic diagram for HR 6533
schematic

Manufacturer equivalents (1)

1182.5005

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6278 · HR 7349

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

ORION CTV 022 · ORION CTV 025 · ORION CTV 125 · ORION CTV 225
