HR 7349

type ST · family 1AP1 · 26.7 kV maximum anode voltage · 110° deflection · 4 windings · 384 g

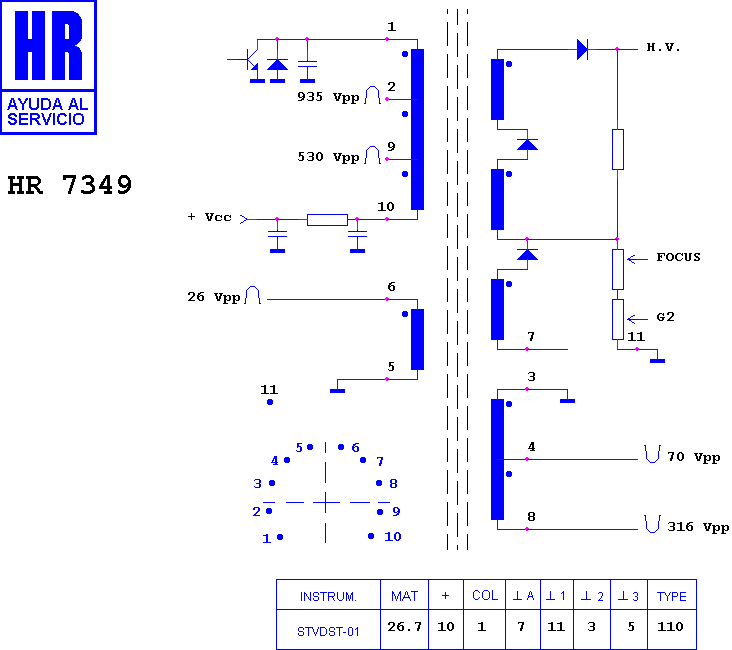

Schematic diagram for HR 7349
schematic

Manufacturer equivalents (1)

1192.0737

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6533 · HR 6278

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

ORION CTV 300
