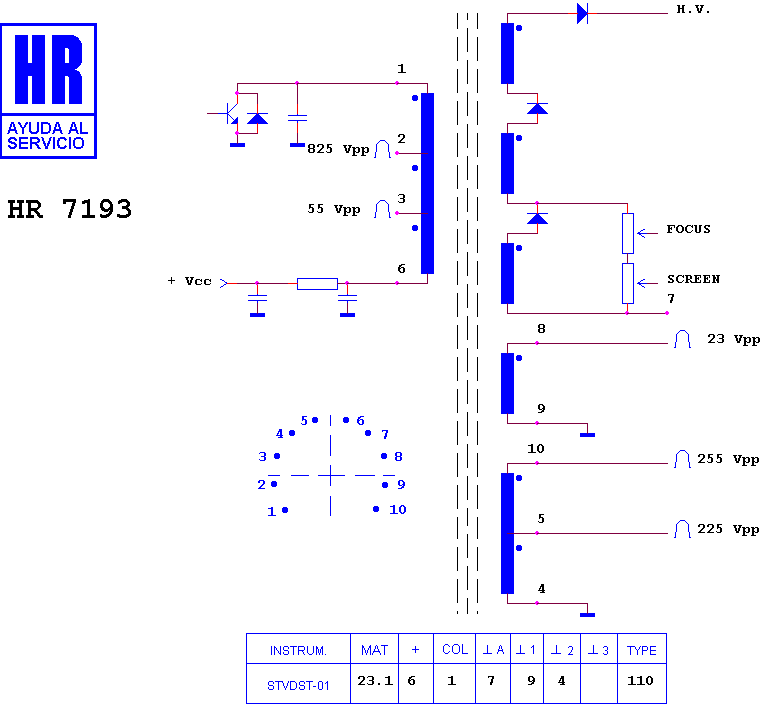

HR 7193

type ST · family 1NP1 · 23.1 kV maximum anode voltage · 110° deflection · 3 windings · 278 g

Manufacturer equivalents (6)

2433132 · 79 A 302-7 · 79 A 302-9 · BSC 24-06298 · TLF 69983 · TLF 69983 F

Parts of a similar design. A shortlist to check, not a recommendation.

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

A.O.C. M 3 C 2-1 B 2 · AIMEI C 4112
