HR 5728

type MC · family 1GS1 · 3 windings · 304 g

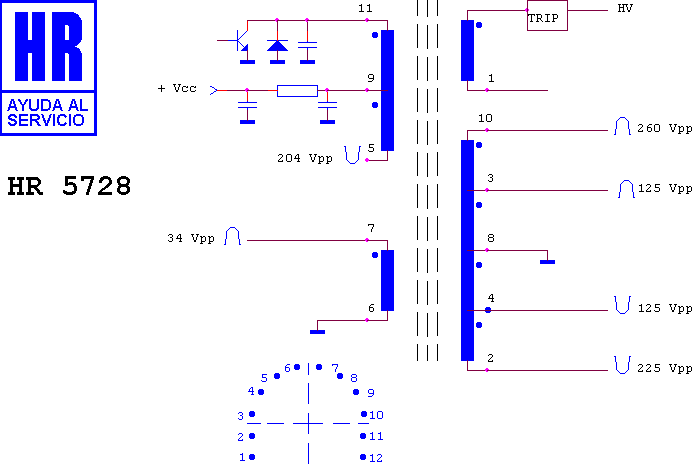

Schematic diagram for HR 5728
schematic

Manufacturer equivalents (3)

29201.025.18 · 29221.025.18 · 29221.025.1800

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5732 · HR 5725 · HR 5729 · HR 5736 · HR 5730 · HR 5735 · HR 5718 · HR 5740 · HR 5741 · HR 5737 · HR 5731 · HR 8895

Fitted to (7)

GRUNDIG 55-105 IDTV · GRUNDIG 55-105/9 IDTV · GRUNDIG CHASIS CUC 1800 · GRUNDIG CHASIS CUC 1822 · GRUNDIG M 55-105 IDTV · GRUNDIG M 55-105/9 IDTV · GRUNDIG SUPER COLOR M
