HR 5737

type MC · family 1GS1 · 4 windings · 304 g

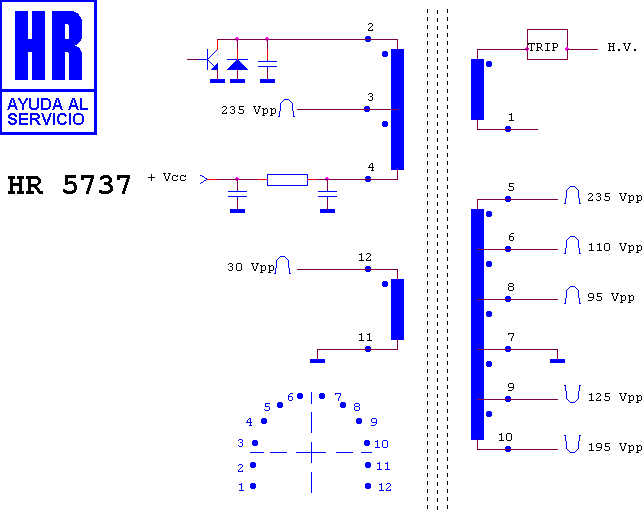

Schematic diagram for HR 5737
schematic

Manufacturer equivalents (5)

444 00 0204 · 444 00 0204/308 · 4609 062 045 · TFAT 345/37 · TFAT 345/37 D

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5728 · HR 5717 · HR 8452 · HR 5736

Fitted to (4)

METZ 7994 · METZ CHASIS 689 G (84 CM) · METZ MALLORCA 84-100 VT · METZ MALLORCA 84-100 VT 100 HZ
