HR 5735

type MC · family 1GS1 · 4 windings · 304 g

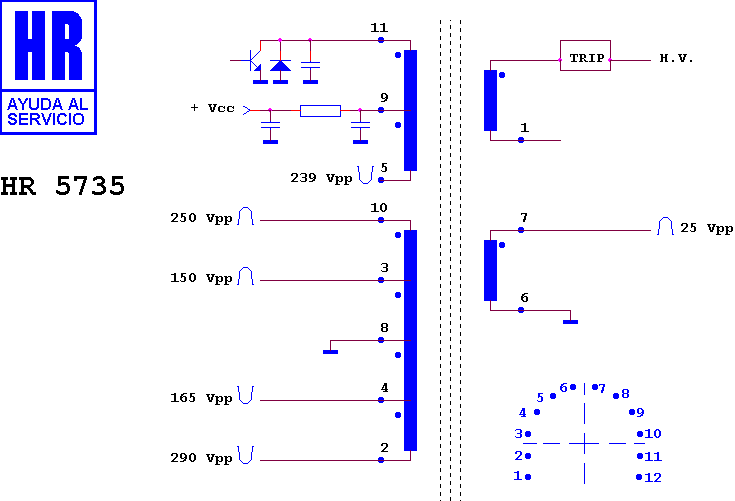

Schematic diagram for HR 5735
schematic

Manufacturer equivalents (3)

29201.025.08 · 29221.025.08 · M29201.025.08

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5731 · HR 5733 · HR 5732 · HR 5725 · HR 5728 · HR 5740 · HR 5729 · HR 5730

Fitted to (8)

GRUNDIG 95-101 · GRUNDIG 95-101 IDTV · GRUNDIG 95-101 IDTV/NIC · GRUNDIG CHASIS CUC 1890 · GRUNDIG M 95-101 · GRUNDIG M 95-101 IDTV · GRUNDIG M 95-101 IDTV NIC · GRUNDIG MONOLITH M
