HR 5740

type MC · family 1GS1 · 4 windings · 304 g

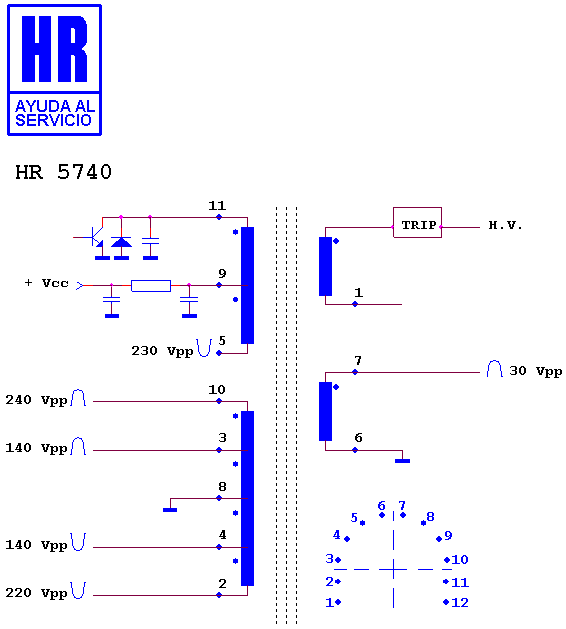

Schematic diagram for HR 5740
schematic (archived)

Manufacturer equivalents (4)

29201.025.20 · 29221.025.20 · FAT 30548 · KN 30548

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 5730 · HR 5725 · HR 5733 · HR 5732 · HR 5734 · HR 5741 · HR 5728 · HR 5735 · HR 5718 · HR 5729 · HR 7468 · HR 5731

Fitted to (12)

GRUNDIG 70-269 PAL PLUS · GRUNDIG 70-269/9 · GRUNDIG 7016/9 PIP · GRUNDIG 7026 PAL PLUS · GRUNDIG M 70-269/9 · GRUNDIG MW 70-269 PAL PLUS · GRUNDIG SE 7016/9 · GRUNDIG SE 7016/9 PIP · GRUNDIG SE 7026 PAL PLUS · GRUNDIG SUPER COLOR M · GRUNDIG SUPER COLOR MW · GRUNDIG TRENTO SE

Search this part in the full database
