HR 46269

59.3 kV maximum anode voltage · H° deflection · 3 windings · 410 g

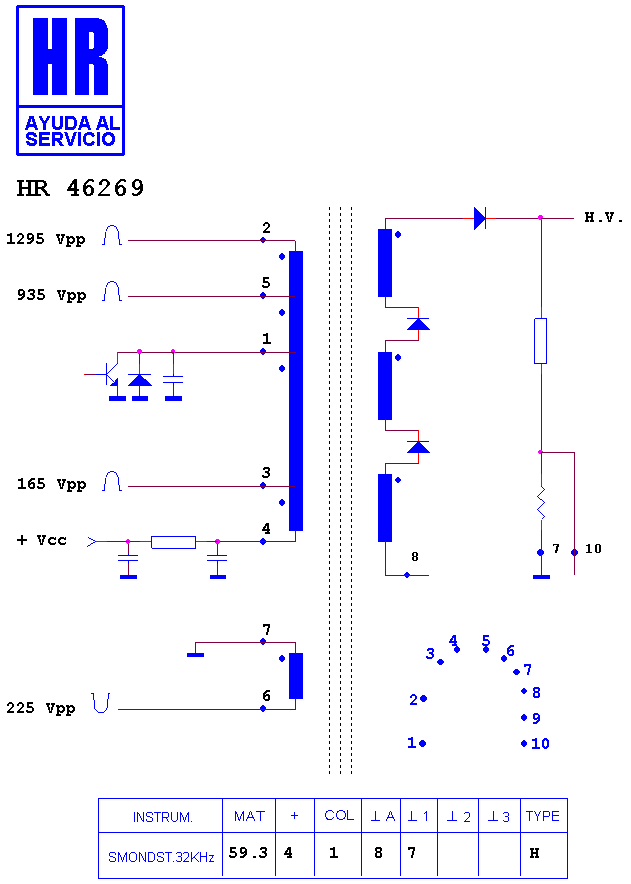

Schematic diagram for HR 46269
schematic (archived)

Manufacturer equivalents (3)

TAD53338 · TAD53338KJBT · TCF8107

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8091 · HR 8049 · HR 7350
