HR 8091

type SM · family 1AS1 · 64.2 kV maximum anode voltage · H° deflection · 3 windings · 350 g

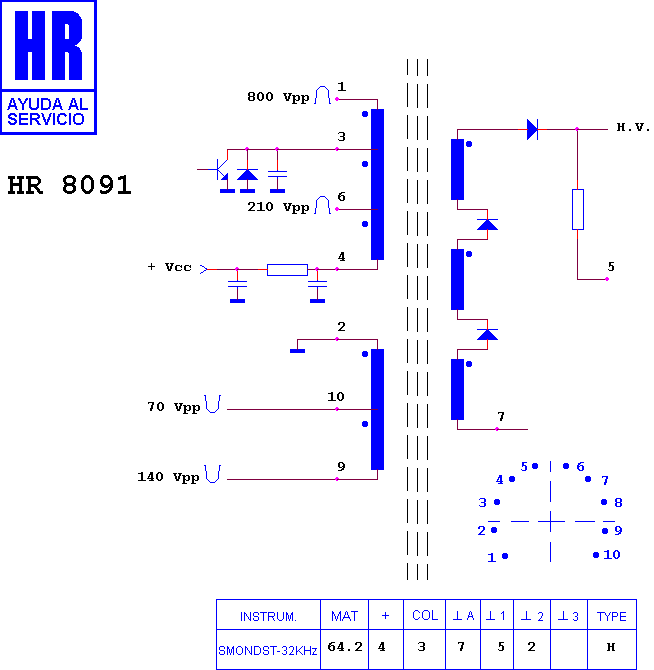

Schematic diagram for HR 8091
schematic
Schematic diagram for HR 8091
schematic (archived)
Schematic diagram for HR 8091
accessory sheet

Manufacturer equivalents (1)

HR 8091

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8371 · HR 46269

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.
