HR 8049

type SM · family 1AS1 · 44.6 kV maximum anode voltage · H° deflection · 4 windings · 346 g

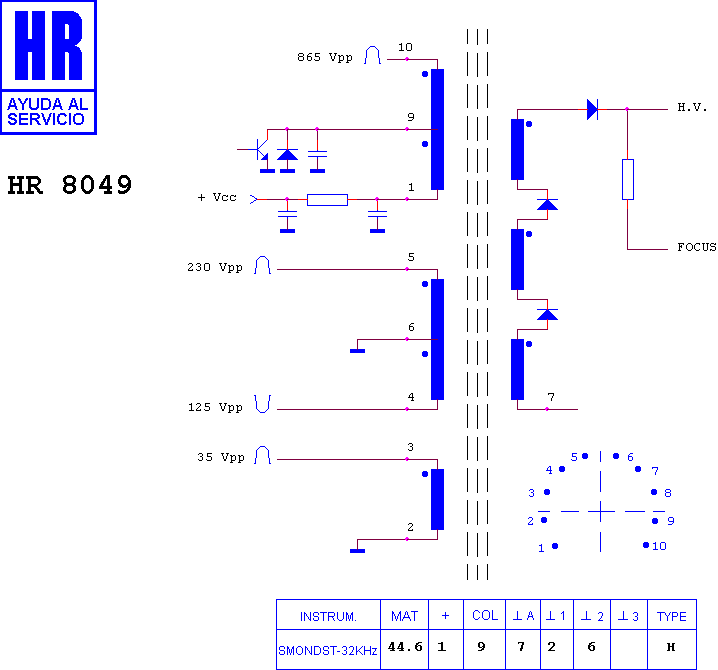

Schematic diagram for HR 8049 — schematic

Manufacturer equivalents (1)

HR 8049-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46269 · HR 8868
