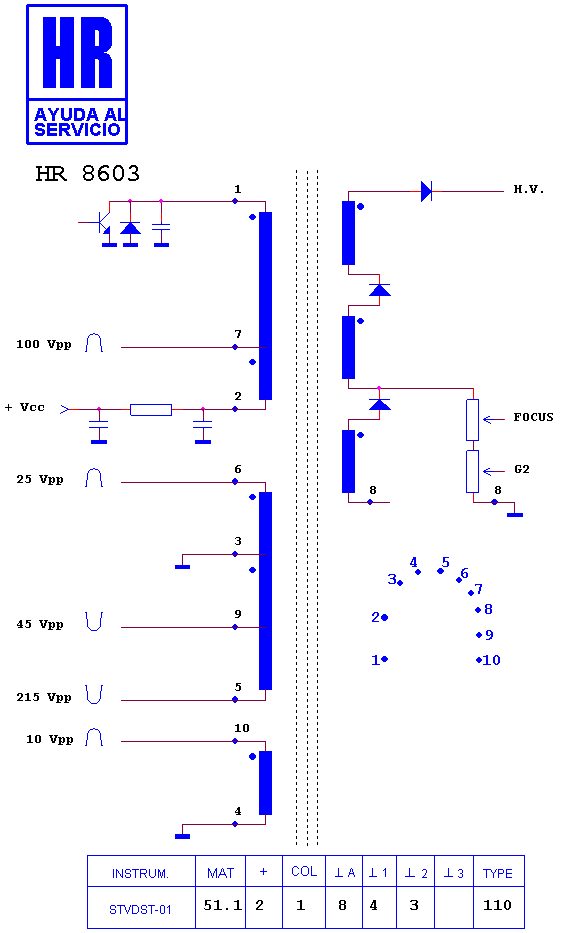

HR 8603

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

Manufacturer equivalents (2)

TLF 15539 B1 · TLF15539B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8901 · HR 8701 · HR 6650

Fitted to (7)

NATIONAL CN 677 R · NATIONAL TC 2686 TR · NATIONAL TC 63 R 50 N · PANASONIC - MATSUSHITA CN 677 R · PANASONIC - MATSUSHITA TC 2686 TR · PANASONIC - MATSUSHITA TC 63 R 50 · PANASONIC - MATSUSHITA TC 63 R 50 N
