HR 8589

type ST · family 1NP1 · 25.2 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

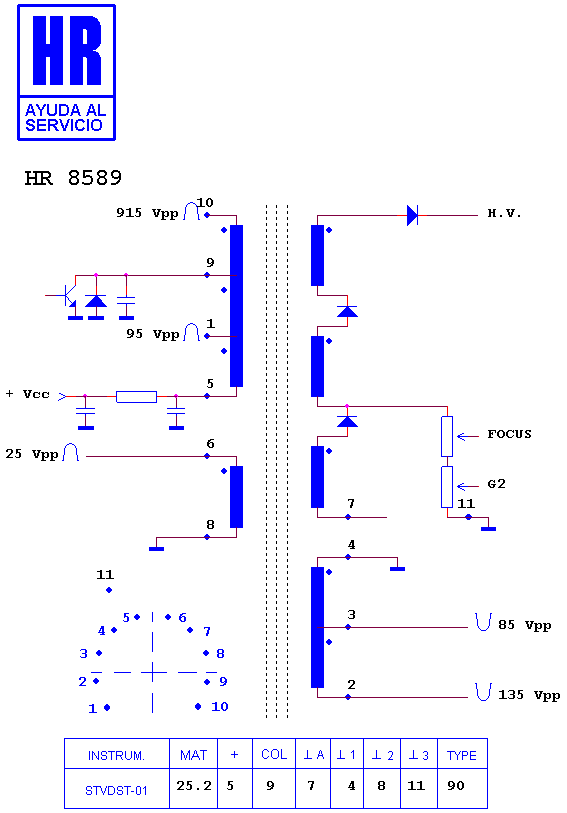

Schematic diagram for HR 8589
schematic

Manufacturer equivalents (2)

8 634 260 500 · OV 2094-37833

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7503 · HR 7522 · HR 7572 · HR 6477

Fitted to (4)

BLAUPUNKT 7 607 005 500 · BLAUPUNKT 7 607 935 020 · BLAUPUNKT 7 607 935 022 · BLAUPUNKT MONITOR

Search this part in the full database
