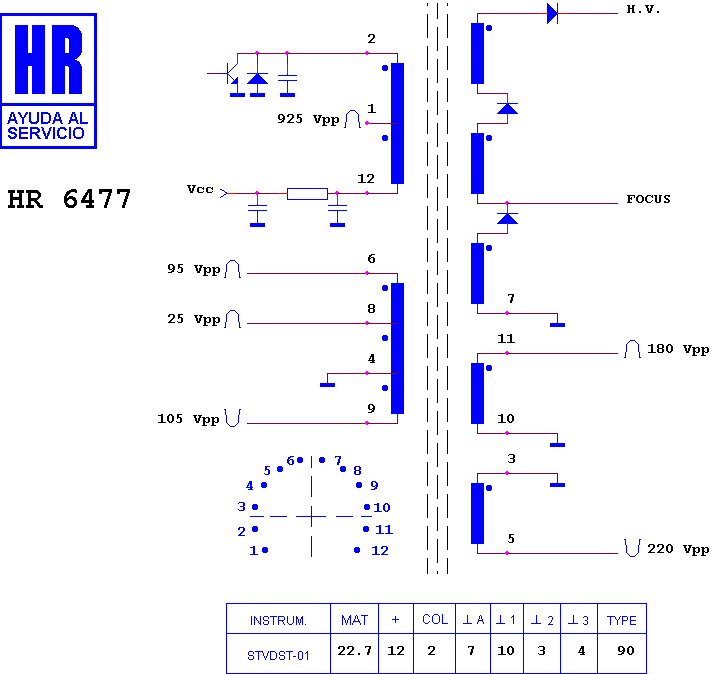

HR 6477

type ST · family 1BS1 · 22.7 kV maximum anode voltage · 90° deflection · 4 windings · 410 g

Manufacturer equivalents (3)

2 G 25039-A2A · 225778 · 5274142

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8054 · HR 8589

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
