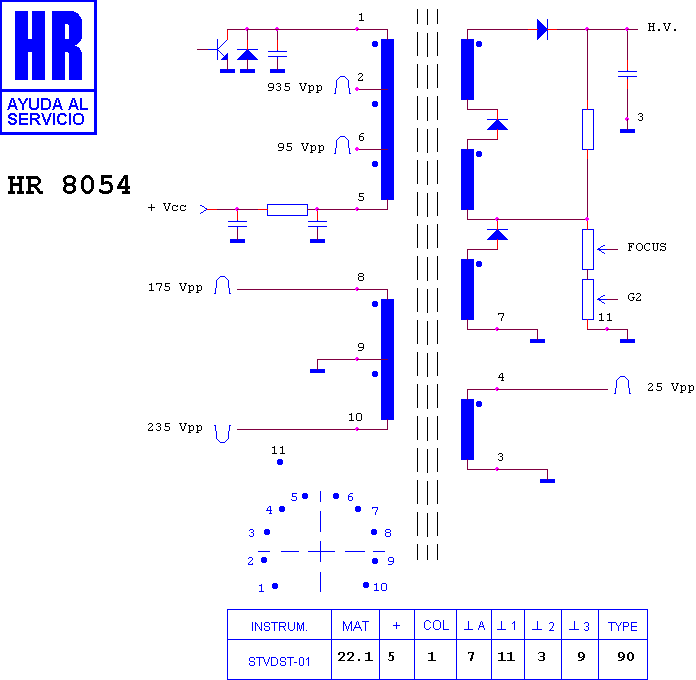

HR 8054

type ST · family 1ACP · 22.1 kV maximum anode voltage · 90° deflection · 4 windings · 434 g

Manufacturer equivalents (1)

02 AV 114

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6477 · HR 8682 · HR 8371 · HR 6337 · HR 7371
