HR 7522

type ST · family 1NP · 25.9 kV maximum anode voltage · 90° deflection · 4 windings · 258 g

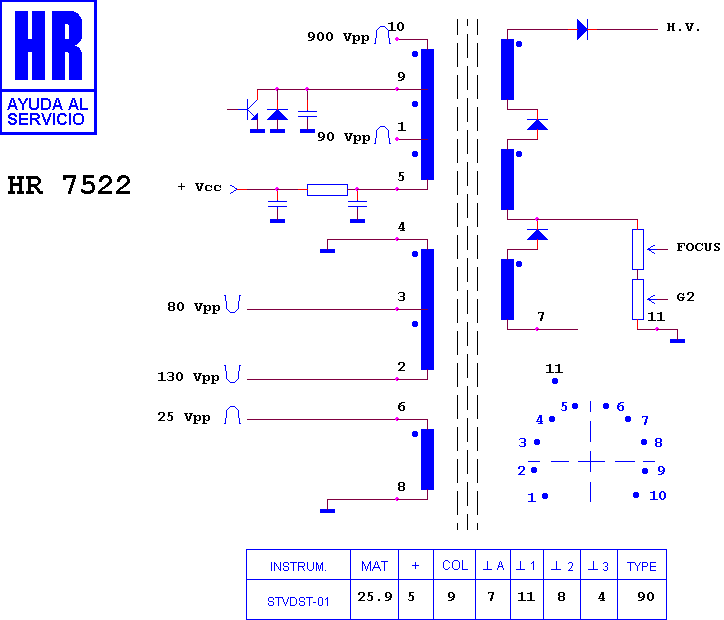

Schematic diagram for HR 7522
schematic

Manufacturer equivalents (32)

003071002 · 003071003 · 003071005 · 003071007 · 003072001 · 240120.4066 · 240120.4125 · 3122 138 38460 · 3122 138 38461 · 3122 138 38463 · 38460 · 38461 · 38462 · 38463 · 38464 · 38465 · 91703006 · AT2079/104 · BSC 23-82509 · BSC23-82S09 · BSC25-3501 · BSC32-82509 · DK 42010 B · DK42023B · FSA 32014 · FSA 32014 M · HR 7522-00 · HR 7522-01 · HR 7522-02 · PET19-19 · RO 630 · TR 630

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7503 · HR 8589 · HR 7572

Fitted to (17)

BEKO - BEKOTEKNIK CHASIS COMTEL · CIHAN ELECTRONIC GRUNDIG CHASIS COC 1 · CIHAN ELECTRONIC GRUNDIG CHASIS MSC 1 · CIHAN ELECTRONIC GRUNDIG CHASIS MSC 1 DRC · COSMOS CHASIS P 921 · GRUNDIG CHASIS COC 1 · GRUNDIG CHASIS CUC 132 R · GRUNDIG CHASIS CUC 300 · GRUNDIG CHASIS MSC 1 · IES P 921 · IES POLARIS 2000 · NEI 1451 R · NEI 1451 TX · NEI 1551 TX · NEI 2131 R · SCHNEIDER STV 655 · SIMTEL STV 655
