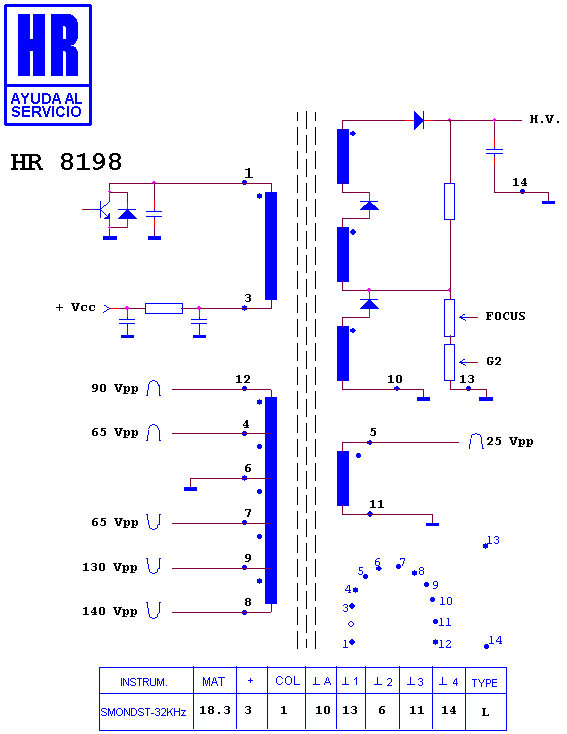

HR 8198

type SM · family 1WP1 · 18.3 kV maximum anode voltage · L° deflection · 4 windings · 461 g

Manufacturer equivalents (1)

HR 8198

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8425 · HR 8315

Fitted to (2)

UNIC MONITOR DATOS · UNIC MONITOR VIDEO
