HR 8315

24.1 kV maximum anode voltage · L° deflection · 4 windings · 474 g

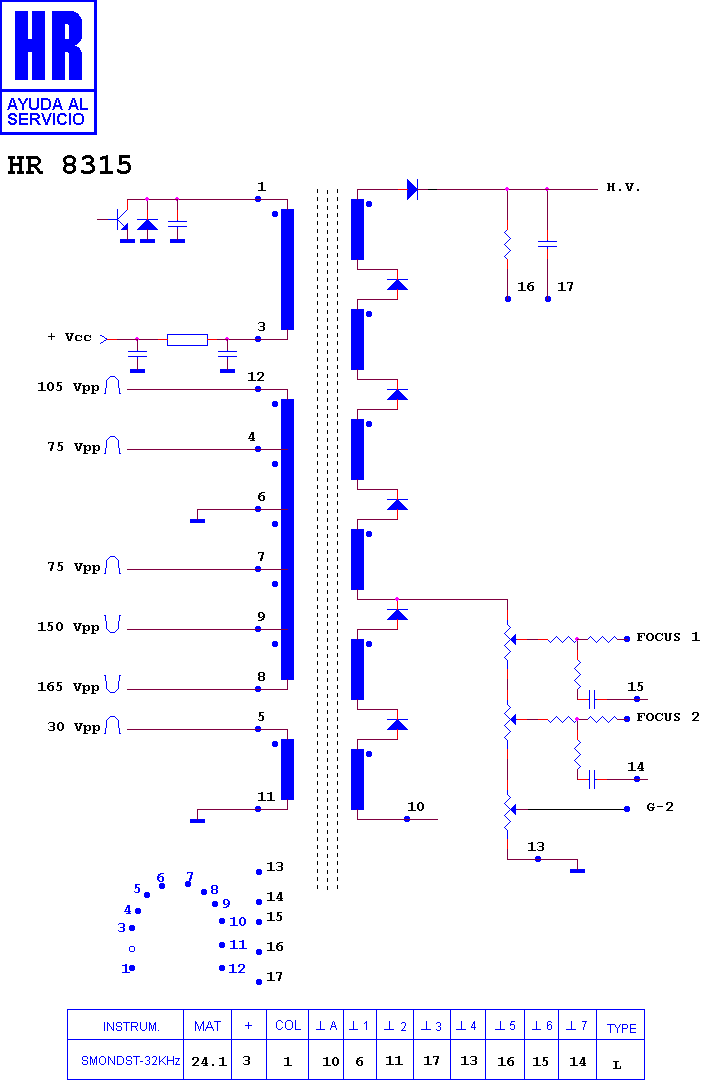

Schematic diagram for HR 8315 — schematic

Schematic diagram for HR 8315 — schematic (archived)

Manufacturer equivalents (1)

HR8315

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8198 · HR 5719 · HR 8245

Fitted to (2)

UNIC MONITOR DATOS · UNIC MONITOR VIDEO
