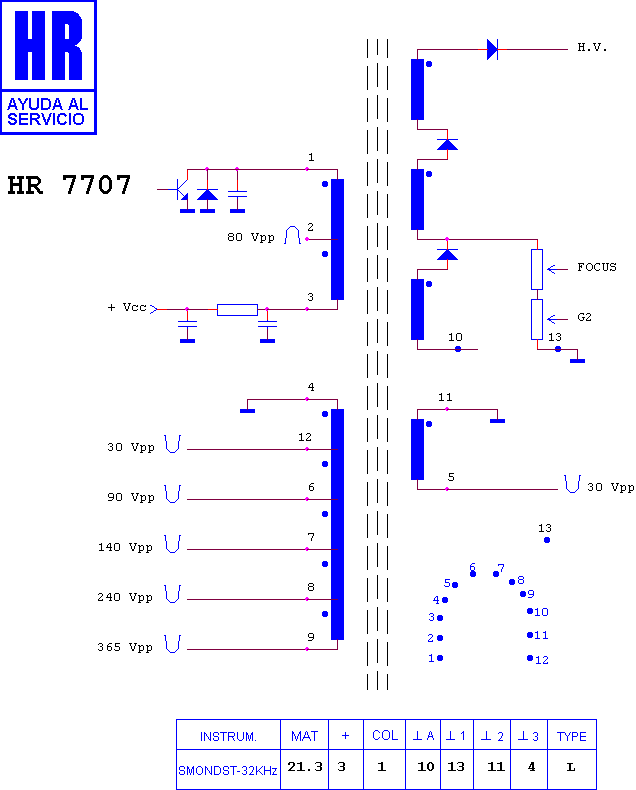

HR 7707

type SM · family 1YP · 21.3 kV maximum anode voltage · L° deflection · 4 windings · 382 g

Manufacturer equivalents (6)

1372.0026 · 1372.0026 A · 3122 268 31020 · 3122 268 31231 · AT 2092/16 · AT 2092/16 SF

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80222 · HR 7742
