HR 80222

24 kV maximum anode voltage · L° deflection · 4 windings · 400 g

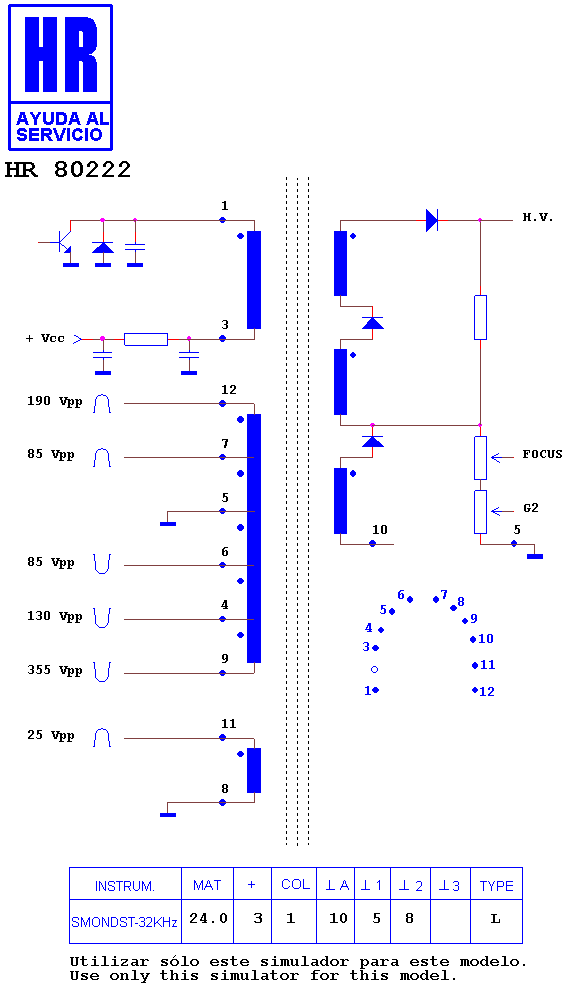

Schematic diagram for HR 80222
schematic (archived)

Manufacturer equivalents (11)

003323118 · 040.024EL2 · 040.024R-E2 · 040.024R-T2 · 040.024TR2 · 1372.0122 · 1372.0122A · 75955.126.98 · 75955.126.9800 · RO878 · TR878

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7707

Fitted to (1)

BEKO - BEKOTEKNIK CHASIS 22.1
