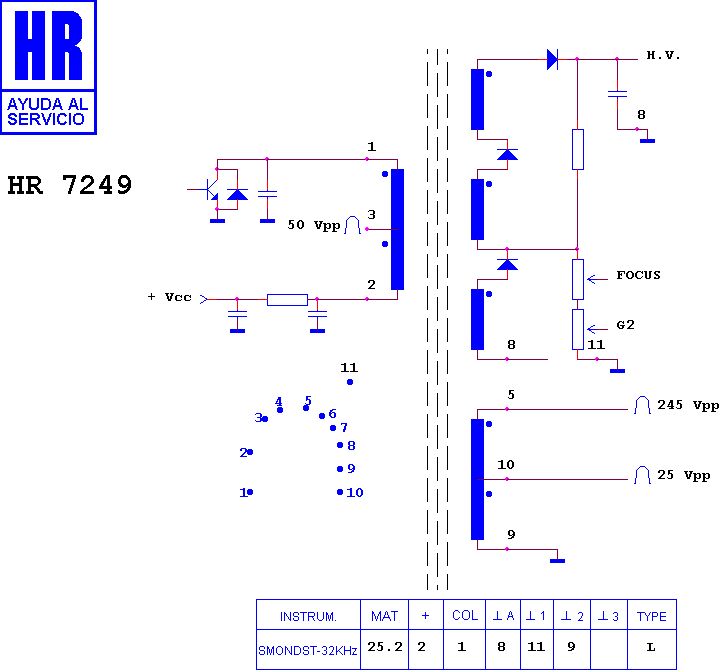

HR 7249

type SM · family 1VCP · 25.2 kV maximum anode voltage · L° deflection · 3 windings · 393 g

Manufacturer equivalents (1)

FCO 14 R 001

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46198 · HR 7342 · HR 46246

Fitted to (4)

IBM 8513 · IBM 8513-002 · IBM 8513002 · IBM MONITOR
