HR 6695

24.6 kV maximum anode voltage · L° deflection · 3 windings · 367 g

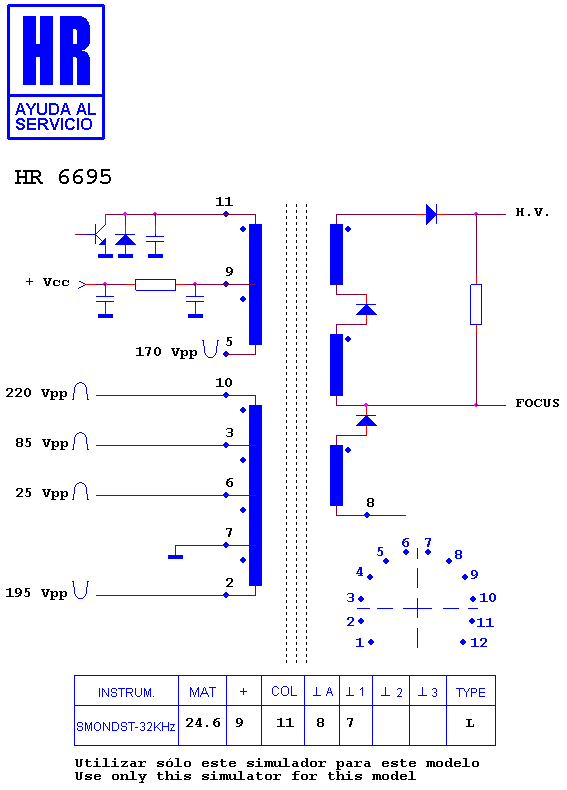

Schematic diagram for HR 6695
schematic (archived)

Manufacturer equivalents (9)

1182.6076 · 1182.6076A · 1182.6076B · 2016800901 · 29201.680.09 · 29201.680.0901 · 29221.680.09 · 29221.680.0901 · HR 6695

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6692 · HR 6696 · HR 5704 · HR 5716 · HR 7134

Fitted to (7)

GRUNDIG 84-6110/8 DOLBY · GRUNDIG 84-6110/8 DOLBY · GRUNDIG 84-6110/8 DOLBY · GRUNDIG LENARO 84 FLAT MF · GRUNDIG LENARO 84 MF · GRUNDIG MF 84-6110/8 DOLBY · GRUNDIG SUPER COLOR MF
