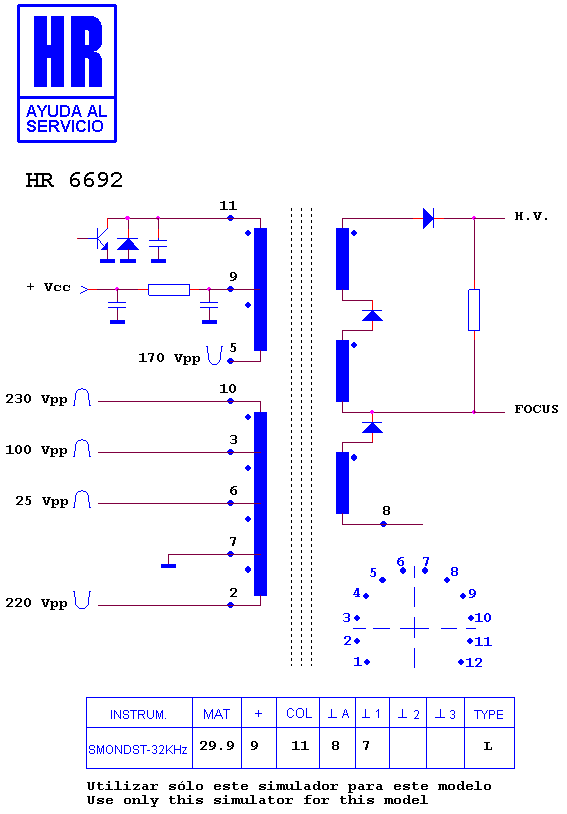

HR 6692

type SM · family 1BS1 · 29.9 kV maximum anode voltage · L° deflection · 3 windings · 367 g

Manufacturer equivalents (9)

016800801 · 1182.6075 · 1182.6075 A · 2016800801 · 29201.680.08 · 29201.680.0801 · 29221.680.08 · 29221.680.0801 · HR 6692

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6696 · HR 6695 · HR 7134 · HR 7717

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control

Fitted to (8)

GRUNDIG 82-3110 DOLBY · GRUNDIG 82-3110/8 DOLBY · GRUNDIG ELEGANCE 82 FLAT MFW · GRUNDIG ELEGANCE MW · GRUNDIG MFW 82-3110 DOLBY · GRUNDIG MFW 82-3110/8 DOLBY · GRUNDIG MW 82-3110 DOLBY · GRUNDIG SE 8270 DOLBY
