HR 6660

type SM · family 1BP1 · 23.7 kV maximum anode voltage · L° deflection · 4 windings · 380 g

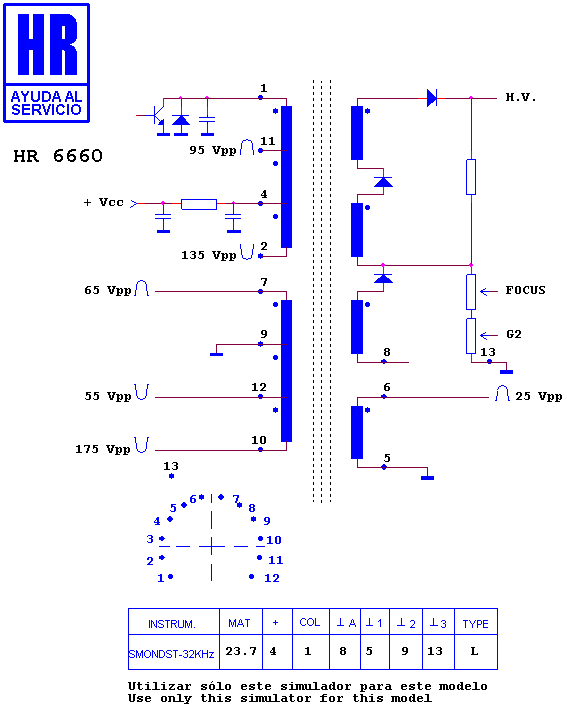

Schematic diagram for HR 6660
schematic

Manufacturer equivalents (11)

003321191 · 1182.1627 · 1182.1627A · 300 206 1 · 30002061 · 4031705111 · 4050001902 · FAT30786 · HR 6660 · RO601 · TR601

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8470

Fitted to (6)

BRINKMAN ST 7097 TXT · BRINKMAN TOPLINE ST 7097 TXT · SEG CT 8050 · SEG CT 8100 · SEG FLORENZ · UNIVERSUM FT 8184

Search this part in the full database
