HR 6659

29.4 kV maximum anode voltage · 110° deflection · 4 windings · 404 g

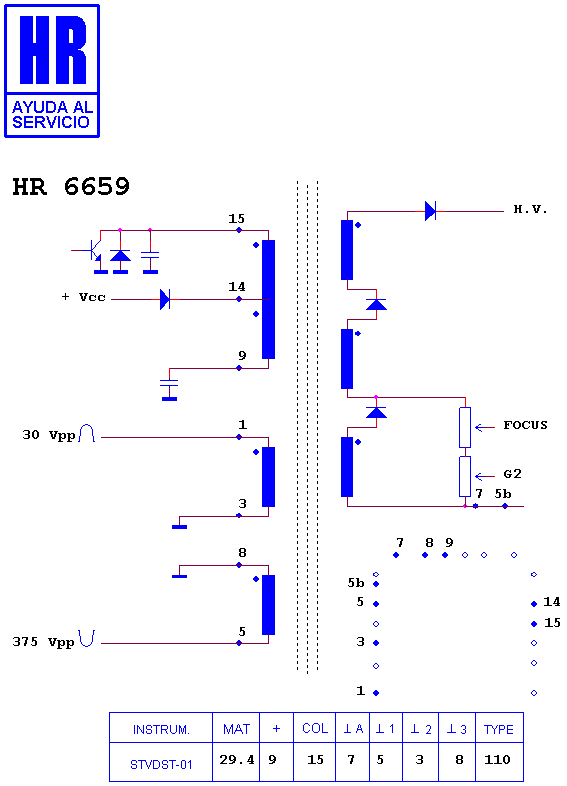

Schematic diagram for HR 6659
schematic
Schematic diagram for HR 6659
schematic (archived)

Manufacturer equivalents (1)

HR6659

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6392 · HR 6618
