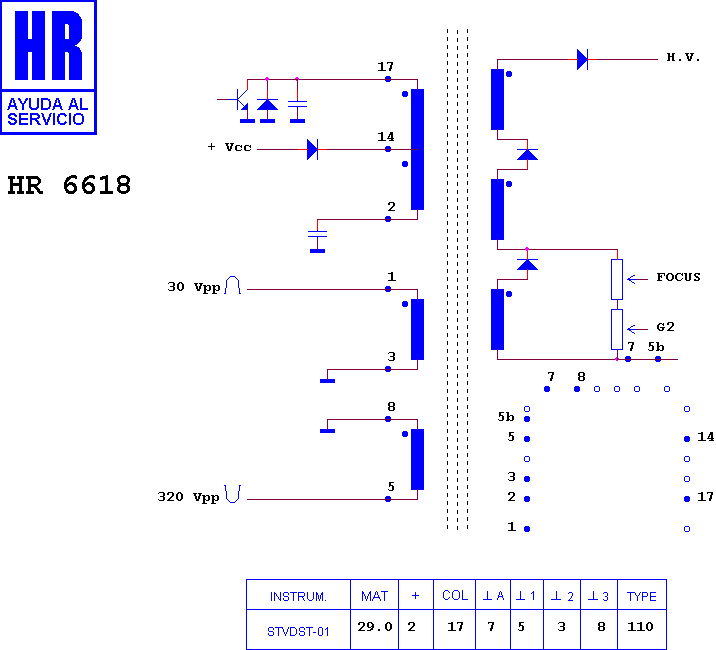

HR 6618

type ST · family 1IP · 29 kV maximum anode voltage · 110° deflection · 4 windings · 436 g

Manufacturer equivalents (1)

HR 6618

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6659

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16506 — EHT anode lead

Fitted to (3)

KELVIN HUGHES 6000 A · KELVIN HUGHES MONITOR · KELVIN HUGHES NUCLEUS 6000 A
