HR 6404

type ST · family 1TS · 25.6 kV maximum anode voltage · 90° deflection · 5 windings · 367 g

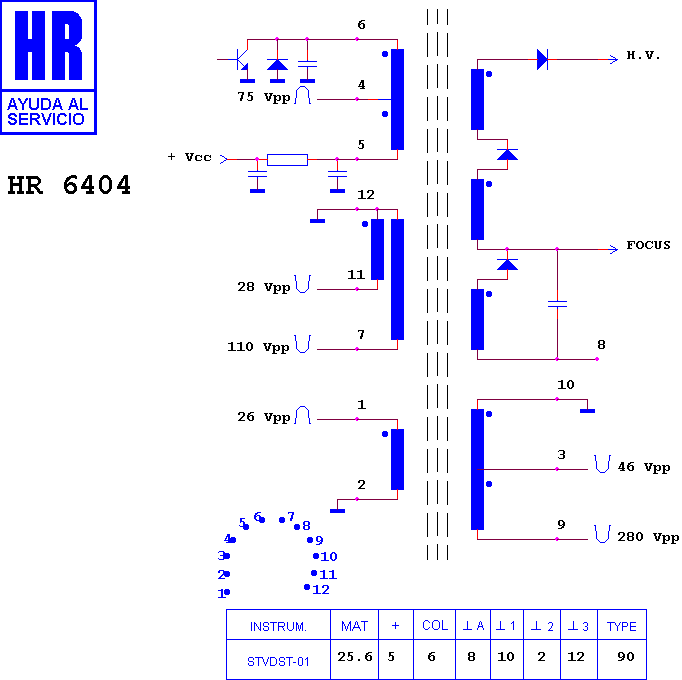

Schematic diagram for HR 6404
schematic

Manufacturer equivalents (11)

003400005 · 1-439-256-00 · 1-439-256-11 · 1-439-256-21 · 1-439-256-22 · FAT3911 · HR 6404 · KN3911 · ME/6121-00 · RO 245 · TR 203

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6405 · HR 8098

Fitted to (7)

SONY KV 1614 E · SONY KV 2704 · SONY KV 2704 E · SONY KV 2704 E(A) · SONY KV 2704 EC · SONY KV 2704 ET · SONY KV 2704 UB
