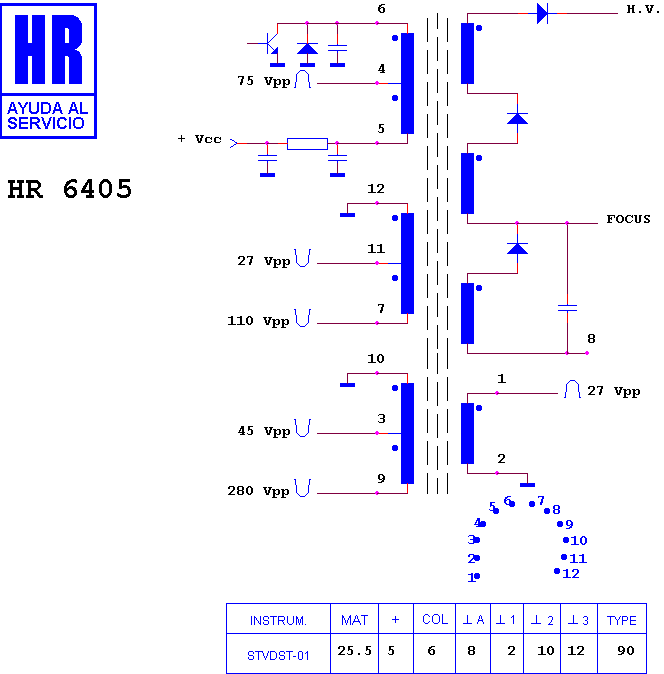

HR 6405

type ST · family 1TS · 25.5 kV maximum anode voltage · 90° deflection · 2 windings · 354 g

Manufacturer equivalents (8)

1-439-288-00 · 1-439-288-11 · 1-439-288-12 · 1-439-288-21 · 1-439-288-32 · FAT 3932 · KN 3932 · ME/6126-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6404

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16502 — EHT anode lead

Fitted to (6)

SONY CKV 2760 PSE · SONY CVM 2560 · SONY CVM 2760 PSA · SONY CVM 2760 PSC · SONY CVM 2760 PSE · SONY KV 2760 E 2

Search this part in the full database
