HR 6287

type ST · family 1BP1 · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 362 g

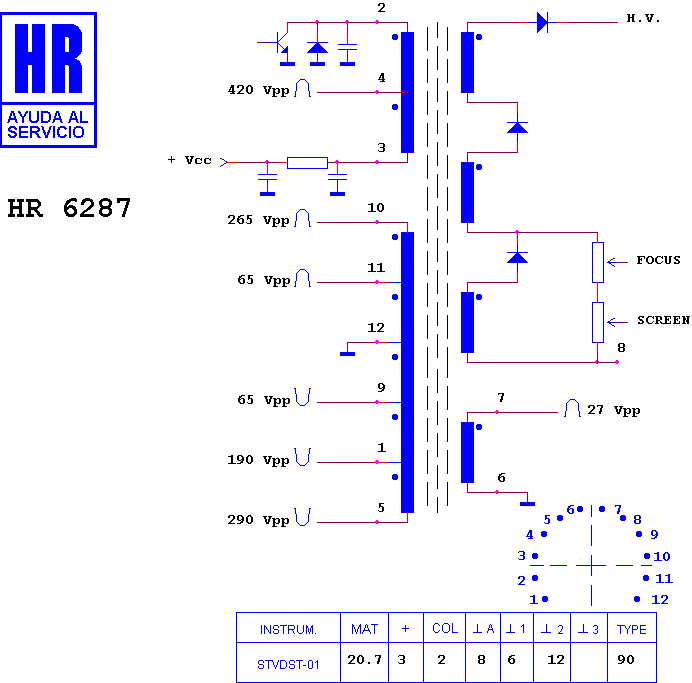

Schematic diagram for HR 6287
schematic

Manufacturer equivalents (1)

HR 6287-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6034 · HR 6108

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
