HR 6108

type ST · family 1BP1 · 21.1 kV maximum anode voltage · 90° deflection · 2 windings · 358 g

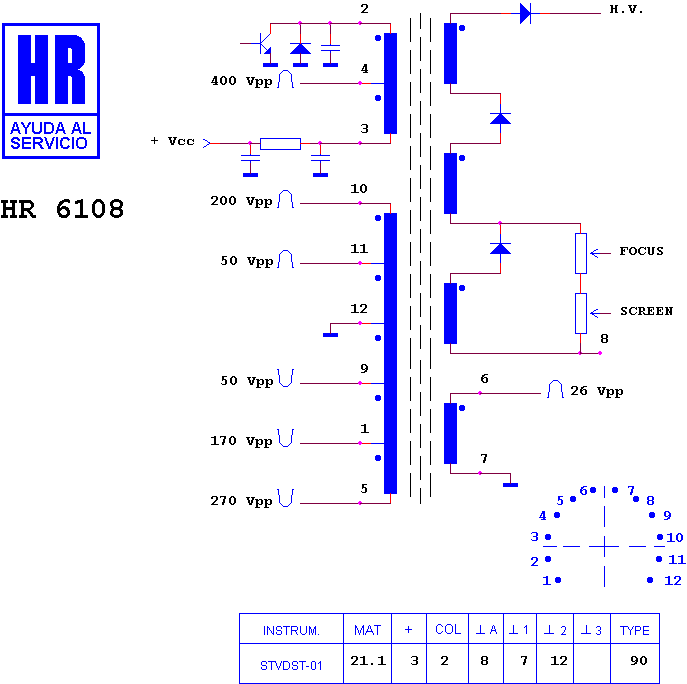

Schematic diagram for HR 6108
schematic

Manufacturer equivalents (2)

37347.00 · 37347.01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6287

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
