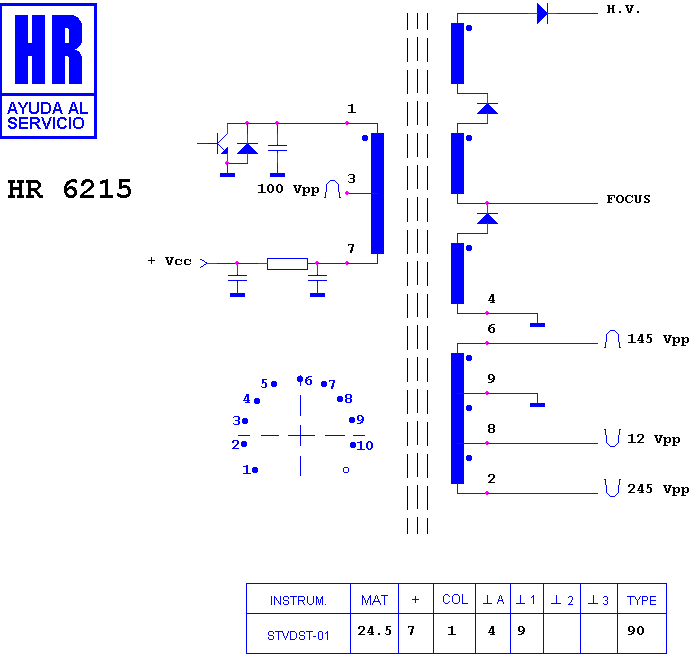

HR 6215

type ST · family 1BS1 · 24.5 kV maximum anode voltage · 90° deflection · 3 windings · 412 g

Manufacturer equivalents (5)

67 TRNS FB 1053 · FB 1053 · FB 1053 A · FBT 1053 · TRNS FB 1053

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8442 · HR 7158
