HR 6198

type ST · family 1BP1 · 26.1 kV maximum anode voltage · 110° deflection · 4 windings · 366 g

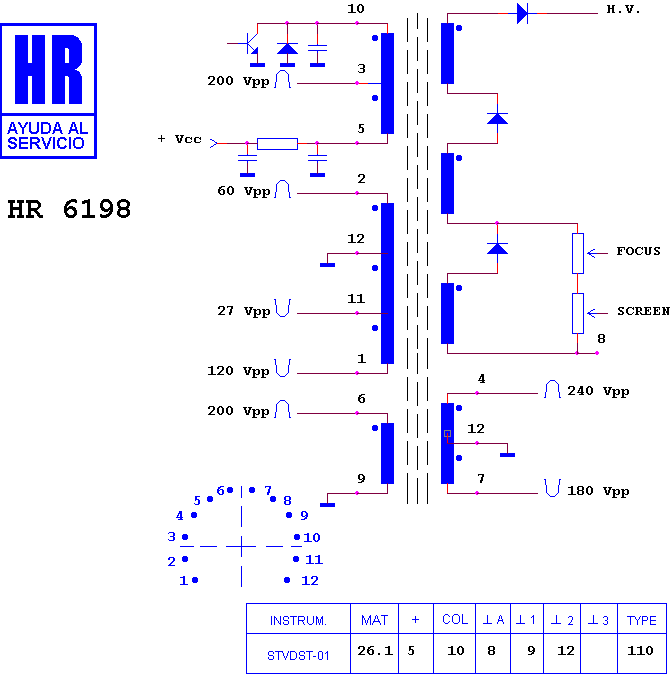

Schematic diagram for HR 6198
schematic

Manufacturer equivalents (1)

HR 6198

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6162 · HR 6024 · HR 6189 · HR 6114

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
