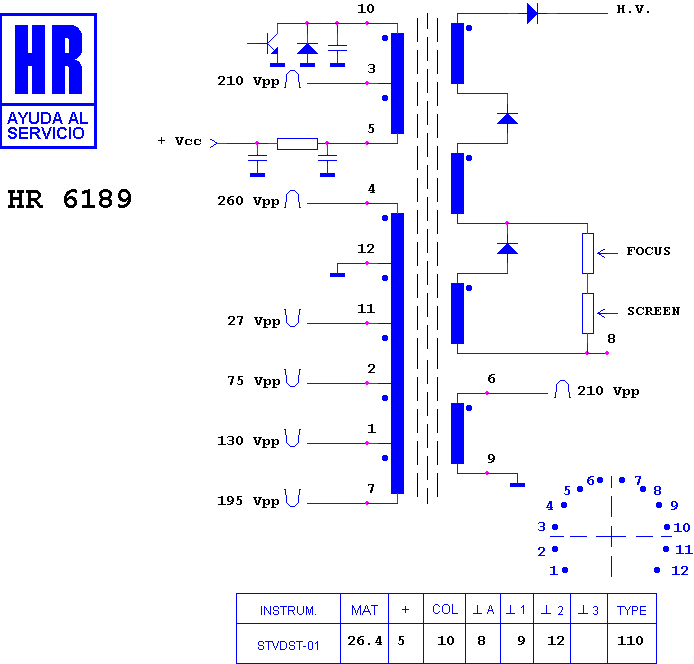

HR 6189

type ST · family 1BP1 · 26.4 kV maximum anode voltage · 110° deflection · 2 windings · 364 g

Manufacturer equivalents (1)

HR 6189

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6024 · HR 6162 · HR 6114 · HR 6198

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
