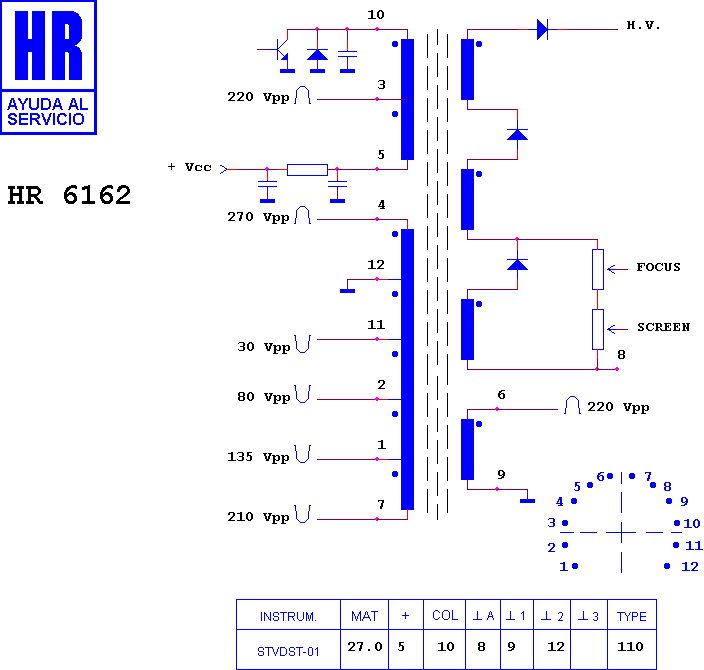

HR 6162

type ST · family 1BP1 · 27 kV maximum anode voltage · 110° deflection · 3 windings · 368 g

Manufacturer equivalents (1)

HR 6162

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6024 · HR 6114 · HR 6189 · HR 6198
