HR 8876

33.3 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

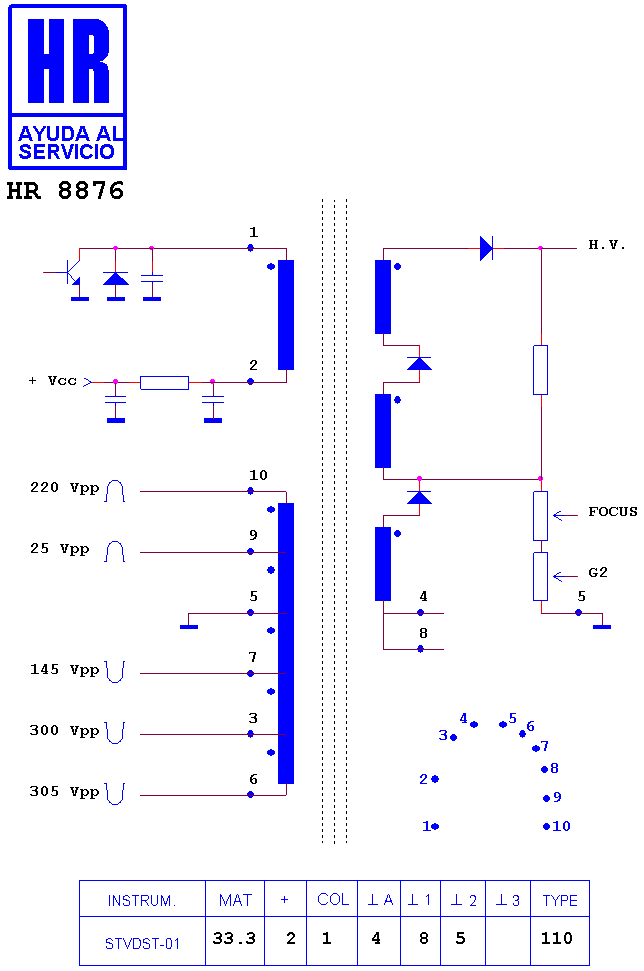

Schematic diagram for HR 8876
schematic (archived)

Manufacturer equivalents (5)

057.234EL3 · 057.234EL5 · 1352.5065 · 1352.5065A · HR 8876

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80096 · HR 6574 · HR 7427

Fitted to (4)

GOLDSTAR - LG 32 CZ 10 RX · GOLDSTAR - LG CHASIS 14.2 110 · GOLDSTAR - LG RE 32 CZ 10 RX · GOLDSTAR - LG RL 32 CZ 10 RX

Search this part in the full database
