HR 8749

28 kV maximum anode voltage · L° deflection · 4 windings · 408 g

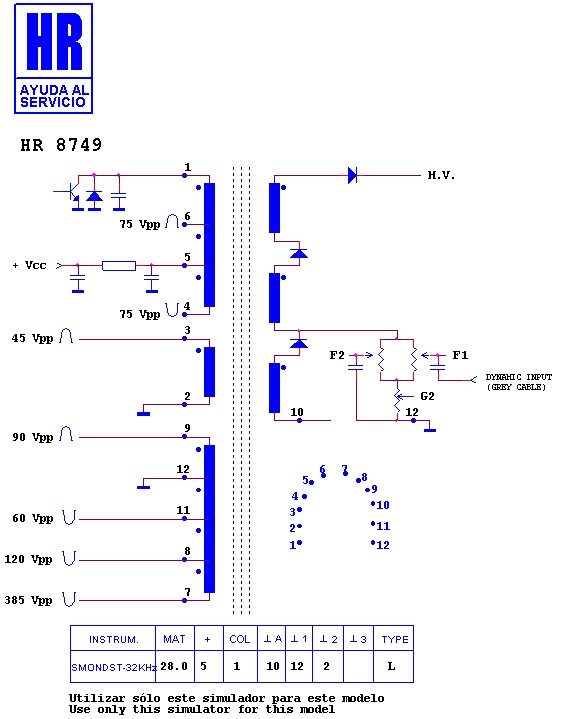

Schematic diagram for HR 8749
schematic (archived)

Manufacturer equivalents (4)

14010553 · 26831552 · 312226831552 · 482214010553

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8748

Fitted to (11)

PHILIPS 32 PW 977 B/56 · PHILIPS 32 PW 977 B/56H · PHILIPS 32 PW 977 B/57 · PHILIPS 32 PW 977 B/69 · PHILIPS 32 PW 977 B/75 · PHILIPS 32 PW 977 B/93 · PHILIPS 32 PW 978 B · PHILIPS 32 PW 978 B/54 · PHILIPS 32 PW 978 B/78 · PHILIPS 32 PW 978 B/85 · PHILIPS CHASIS GFL 2.20 A AA
