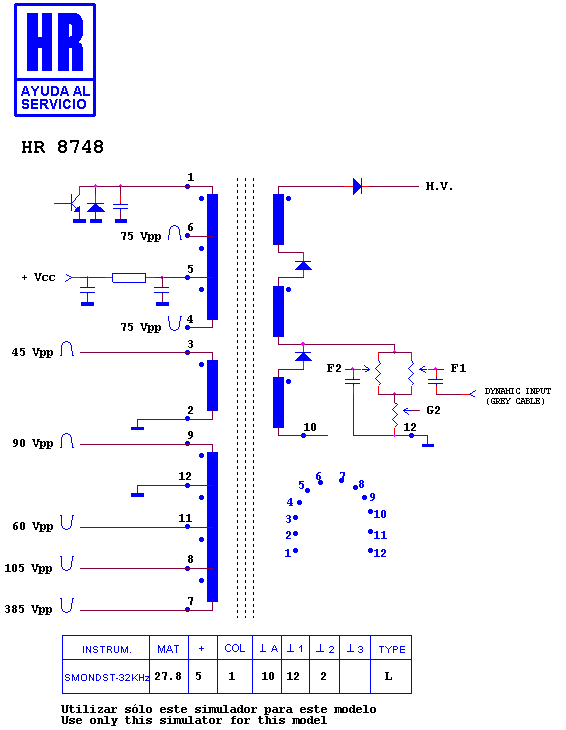

HR 8748

type SM · family 1YD · 27.8 kV maximum anode voltage · L° deflection · 4 windings · 408 g

Manufacturer equivalents (6)

140 10536 · 268 30924 · 268 30926 · 3122 268 30924 · 3122 268 30926 · 4822 140 10536

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8749

Notes

COR-027 THE GREY CABLE FROM THE HR(DIN.FOCUS)MUST BE SOLDED TO PCB HOLE WHICH CORRESPONDS TO THE DIN.FOC.FROM THE ORGIN.

Fitted to (15)

PHILIPS 32 PW 967 A/57 · PHILIPS 32 PW 977 A/56 · PHILIPS 32 PW 977 A/56H · PHILIPS 32 PW 977 A/57 · PHILIPS 32 PW 977 A/69 · PHILIPS 32 PW 977 A/75 · PHILIPS 32 PW 977 A/79 · PHILIPS 32 PW 977 A/93 · PHILIPS 32 PX 967 A · PHILIPS 32 PX 967 A/57 · PHILIPS 32 PX 977 A/57 · PHILIPS 32 PX 977 A/75 · PHILIPS CHASIS 2.20 A AA · PHILIPS CHASIS 2.20 AA · PHILIPS CHASIS GFL 2.20 A AA
