HR 8743

51.1 kV maximum anode voltage · 110° deflection · 3 windings · 408 g

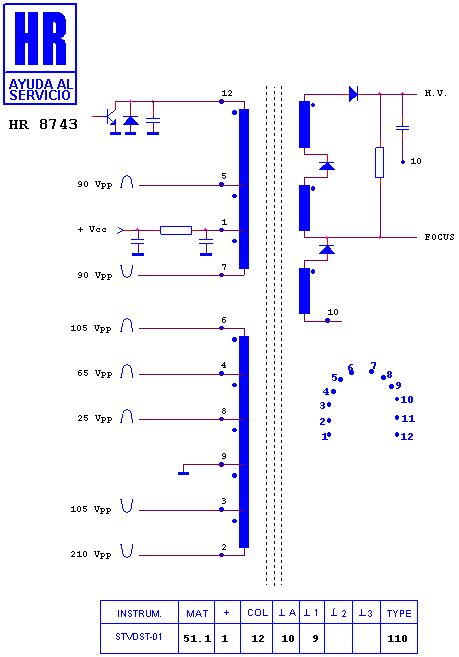

Schematic diagram for HR 8743
schematic (archived)

Manufacturer equivalents (6)

1372.9023 · 1372.9023B · 276-029750 · 276-29750 · 276-29750.050 · HR 8743

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8275

Fitted to (2)

LOEWE / LOEWE-OPTA ACONDA 9281 · LOEWE / LOEWE-OPTA CHASIS Q 2400

Search this part in the full database
