HR 8695

22.9 kV maximum anode voltage · L° deflection · 4 windings · 352 g

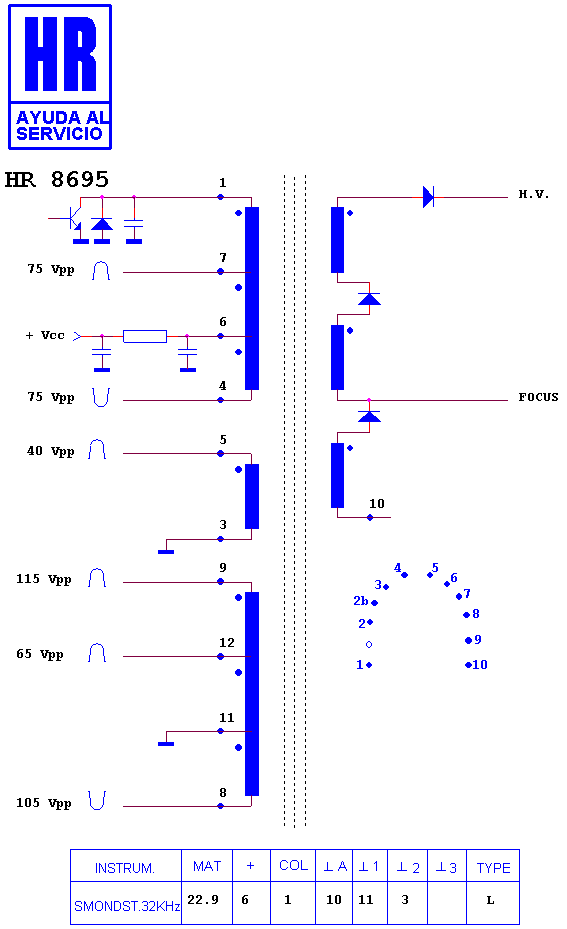

Schematic diagram for HR 8695
schematic (archived)

Manufacturer equivalents (8)

1372.6007 · 1372.6007A · 1372.6007B · 1372.6007C · 242253102388 · 53102388 · HR 8695 · KN35029N

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80070

Fitted to (16)

PHILIPS 29 PT 9006 · PHILIPS 29 PT 9006/12 · PHILIPS 29 PT 9006/12 R · PHILIPS 29 PT 9006/19 · PHILIPS 29 PT 9006/58 · PHILIPS 29 PT 9006/58 R · PHILIPS 29 PT 9416 · PHILIPS 29 PT 9416/12 B · PHILIPS 29 PT 9416/12 R · PHILIPS 29 PT 9416/58 R · PHILIPS 29 PT 9418 · PHILIPS 29 PT 9418/79 · PHILIPS CHASIS MG 2.1 29 PLAT · PHILIPS CHASIS MG 3.1 E AA · PHILIPS CHASIS MG 7.1 29 PLAT · PHILIPS CHASIS MG 7.2 29 PLAT

Search this part in the full database
