HR 80070

29.7 kV maximum anode voltage · L° deflection · 4 windings · 400 g

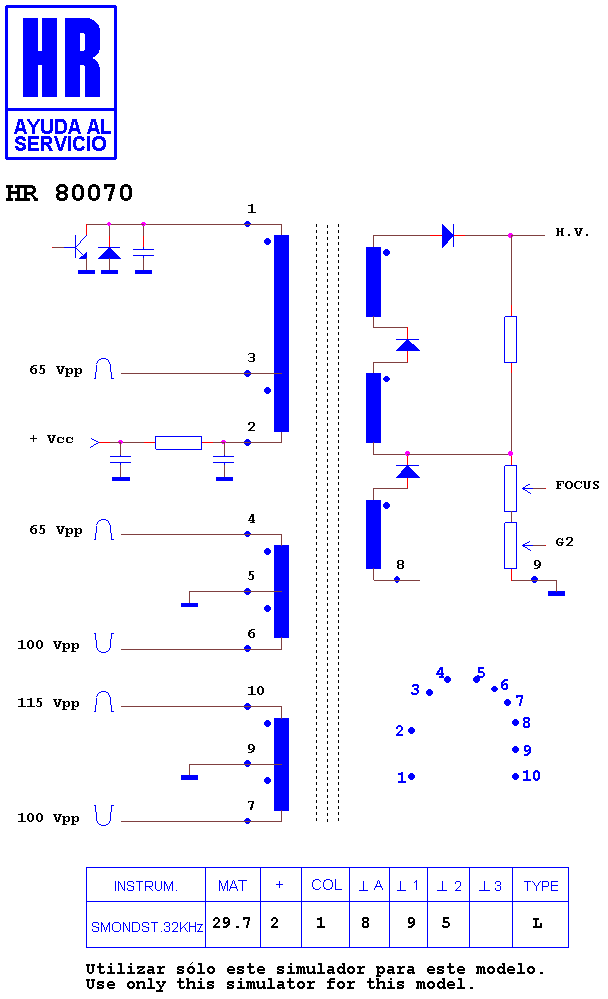

Schematic diagram for HR 80070
schematic (archived)

Manufacturer equivalents (11)

003323136 · 1372.0130 · 1372.0130A · 242253100062 · 242253100081 · HR 80070 · JF0101-27309 · JF0101-27309B · JF0101-27309BB · RO493 · TR493

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8695

Fitted to (16)

PHILIPS 28 PW 8620 · PHILIPS 28 PW 8720 · PHILIPS 28 PW 8720/05 · PHILIPS 29 PT 640 · PHILIPS 29 PT 640/12 · PHILIPS 29 PT 8520 · PHILIPS 29 PT 8520/12 · PHILIPS 29 PT 8640 · PHILIPS 29 PT 8640/12 · PHILIPS 29 PT 8641 · PHILIPS 29 PT 8641/12 · PHILIPS 29 PT 8650 · PHILIPS 29 PT 8650/12 · PHILIPS 29 PT 8660 · PHILIPS 29 PT 8660/12 · PHILIPS CHASIS ES 1 E.AA

Search this part in the full database
