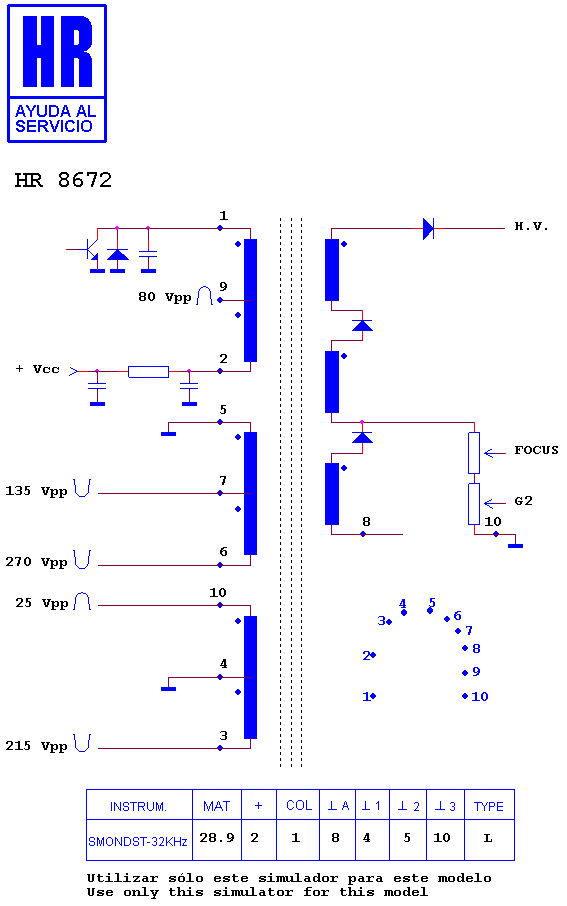

HR 8672

type SM · family 1YP · 28.9 kV maximum anode voltage · L° deflection · 4 windings · 410 g

Manufacturer equivalents (1)

ZTFM 05013 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6675 · HR 8573

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

PANASONIC - MATSUSHITA TX 24 AS 10 · PANASONIC - MATSUSHITA TX 25 AS 10 D
