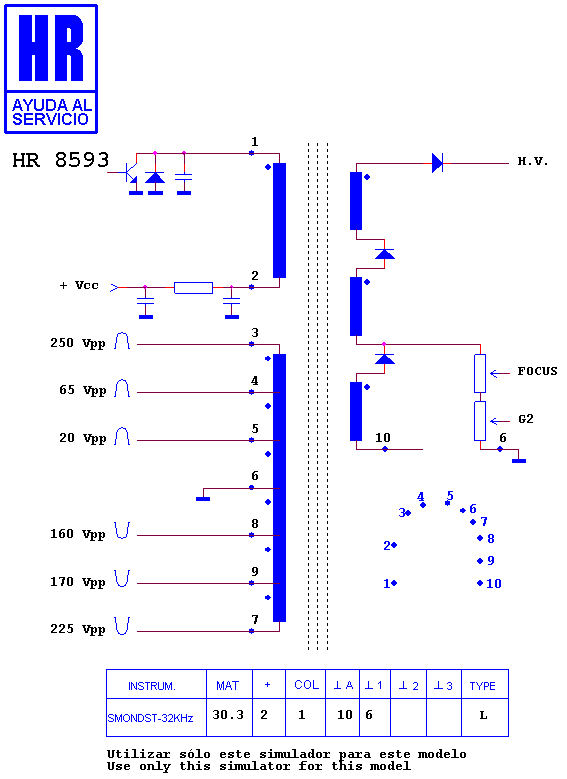

HR 8593

type SM · family 1YP · 30.3 kV maximum anode voltage · L° deflection · 3 windings · 410 g

Manufacturer equivalents (2)

ZTFH 65015 A · ZTFM 05005 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

Fitted to (8)

PANASONIC - MATSUSHITA CHASIS EURO 3 H · PANASONIC - MATSUSHITA TX 28 PK 10 F · PANASONIC - MATSUSHITA TX 29 AD 70 C · PANASONIC - MATSUSHITA TX 29 AD 70 DP · PANASONIC - MATSUSHITA TX 29 AD 70 F · PANASONIC - MATSUSHITA TX 29 AD 70 FP · PANASONIC - MATSUSHITA TX 29 AD 70 P · PANASONIC - MATSUSHITA TX 29 AD 90 F
