HR 8551

type ST · family 1AS1 · 25.9 kV maximum anode voltage · 90° deflection · 3 windings · 346 g

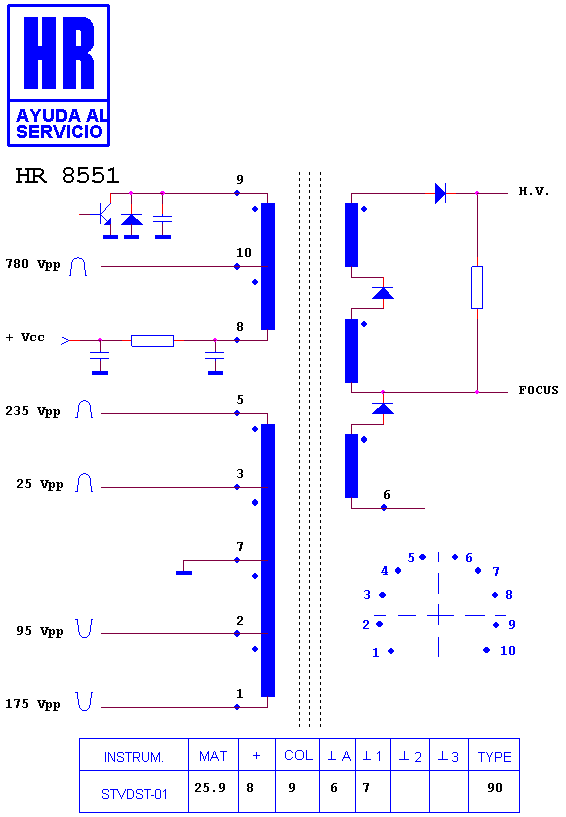

Schematic diagram for HR 8551
schematic

Manufacturer equivalents (10)

15128-12 D · 15128-12B · 15128-12C · 15128110 · 1512812A · 239111 · PN15128-12D · PNXX15128-12C · XX15128-12C · XX15128-12D

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8682 · HR 7371 · HR 6337 · HR 8371

Fitted to (8)

GENERAL ELECTRIC PROJECTION PTK 195 BL · GENERAL ELECTRIC PTK 195 BL · RCA CHASIS CTC 195 · RCA CTC 195 · RCA PROJECTION PTK 195 BL · RCA PTK 195 BL · RCA RETROPROYECTOR CTC 195 · THOMSON 33 MS 24 E

Search this part in the full database
