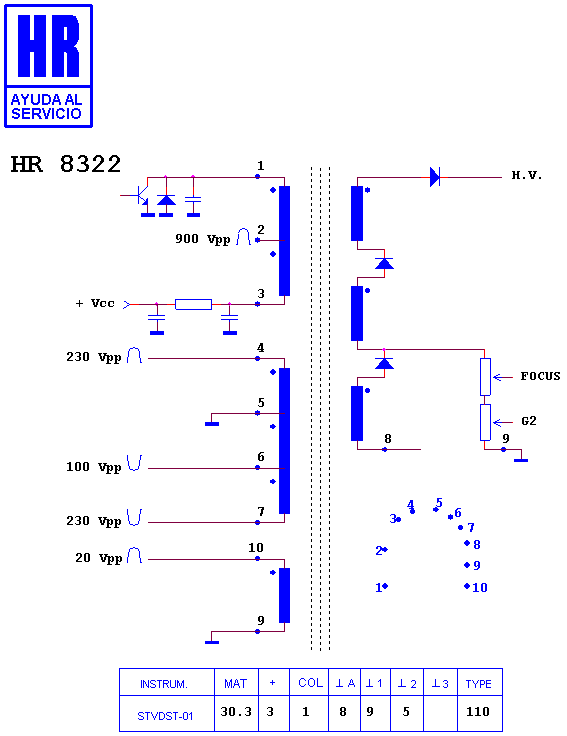

HR 8322

type ST · family 1YP · 30.3 kV maximum anode voltage · 110° deflection · 4 windings · 372 g

Manufacturer equivalents (4)

140 10549 · 4822 140 10549 · KFT 4 AB 005 · KFT 4 AB 005 PMP

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7334 · HR 6715

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (21)

PHILIPS 29 PT 740 · PHILIPS 29 PT 740 C/56H · PHILIPS 29 PT 740 C/56R · PHILIPS 29 PT 746 C/56H · PHILIPS 29 PT 746 C/56R · PHILIPS 29 PT 760 · PHILIPS 29 PT 760 A · PHILIPS 29 PT 760 C/57R · PHILIPS 29 PT 780 A/67R · PHILIPS 29 PT 780 A/93R · PHILIPS 29 PT 780 C/57R · PHILIPS 29 PT 785 · PHILIPS 29 PT 785 C · PHILIPS 29 PT 785 C/78 · PHILIPS 29 PT 785 C/78R · PHILIPS 29 PT 785 C/85R · PHILIPS 29 PT 856 · PHILIPS CHASIS G 88 · PHILIPS CHASIS G 88 AA · PHILIPS CHASIS G 88 I · PHILIPS CHASIS G 88-1
