HR 8252

type ST · family 1XP1 · 25.5 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

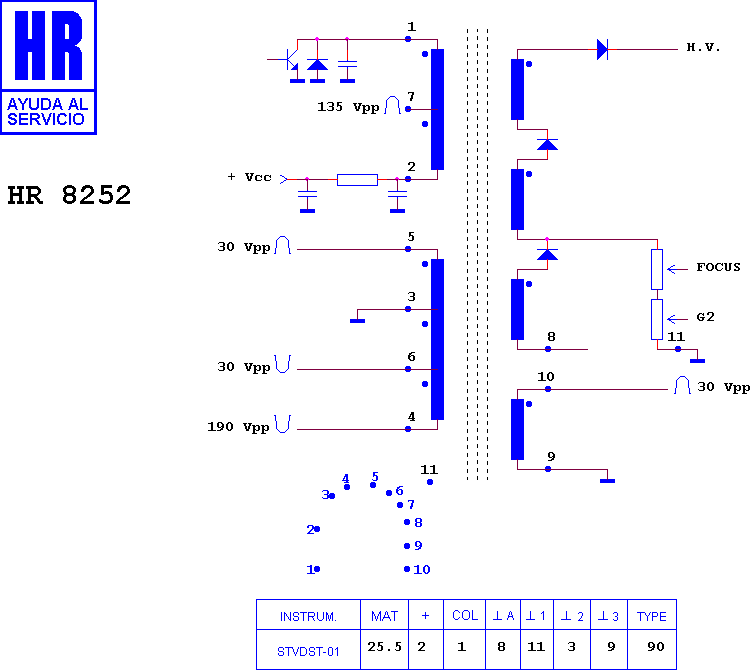

Schematic diagram for HR 8252
schematic

Manufacturer equivalents (13)

08150 · 08151 · 08152 · 08153 · 08154 · 140 17061 · 3306 130 08151 · 4806 140 17061 · 482214017061 · AT 2079/B10 · FAT30665 · KT 2013 · TVC/140

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6106 · HR 6128

Fitted to (3)

PHILIPS 14 GX 1619 · PHILIPS CHASIS GR 1 R 03 · PHILIPS CHASIS GR 6 AL
