HR 8244

type ST · family 1YP · 34.2 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

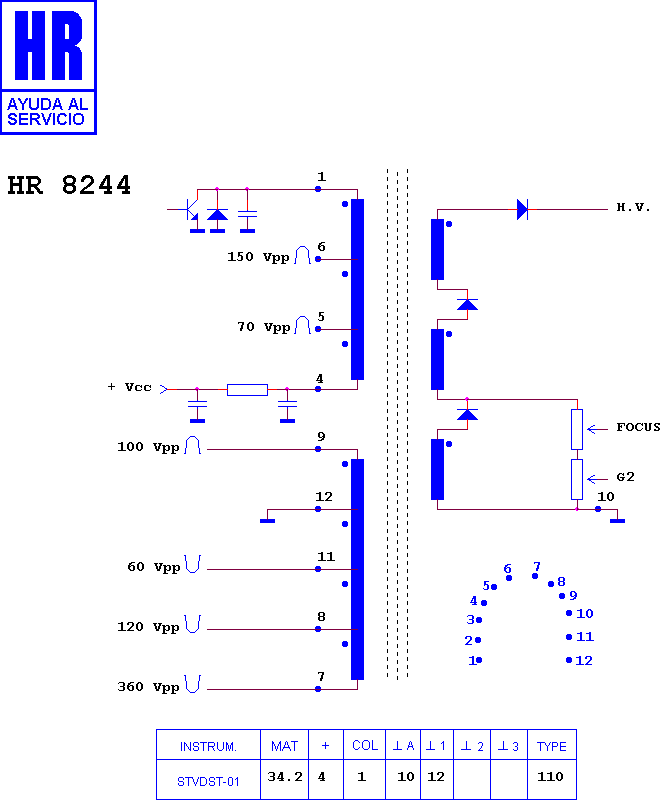

Schematic diagram for HR 8244
schematic

Manufacturer equivalents (5)

140 10554 · 268 31561 · 3122 268 31561 · 31561-368046-1 · 4822 140 10554

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8243

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (9)

PHILIPS 28 PW 757 B/56 · PHILIPS 28 PW 757 B/56H · PHILIPS 28 PW 757 B/57 · PHILIPS 28 PW 757 B/69 · PHILIPS 28 PW 757 B/75 · PHILIPS 28 PW 778 B/54 · PHILIPS 28 PW 778 B/58 · PHILIPS 28 PW 778 B/85 · PHILIPS CHASIS GFL 2.00 A AA
