HR 8243

type ST · family 1YP · 33.9 kV maximum anode voltage · 110° deflection · 4 windings · 410 g

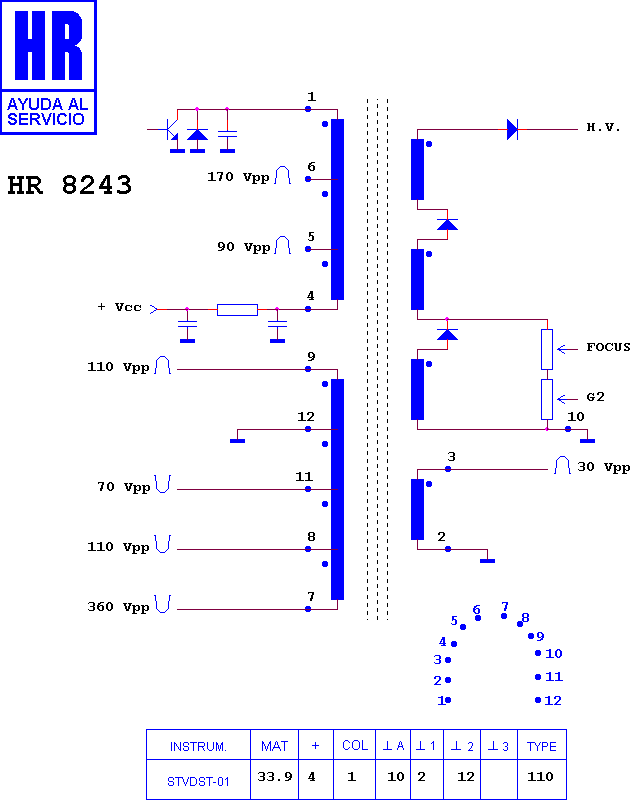

Schematic diagram for HR 8243
schematic

Manufacturer equivalents (4)

140 10533 · 268 31372 · 3122 268 31372 · 4822 140 10533

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8244

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (7)

PHILIPS 28 PW 757 A/56 · PHILIPS 28 PW 757 A/56H · PHILIPS 28 PW 757 A/57 · PHILIPS 28 PW 757 A/69 · PHILIPS 28 PW 757 A/75 · PHILIPS 28 PW 757 A/79 · PHILIPS CHASIS GFL 2.00 A AA
