HR 8240

type ST · family 1XP1 · 26.2 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

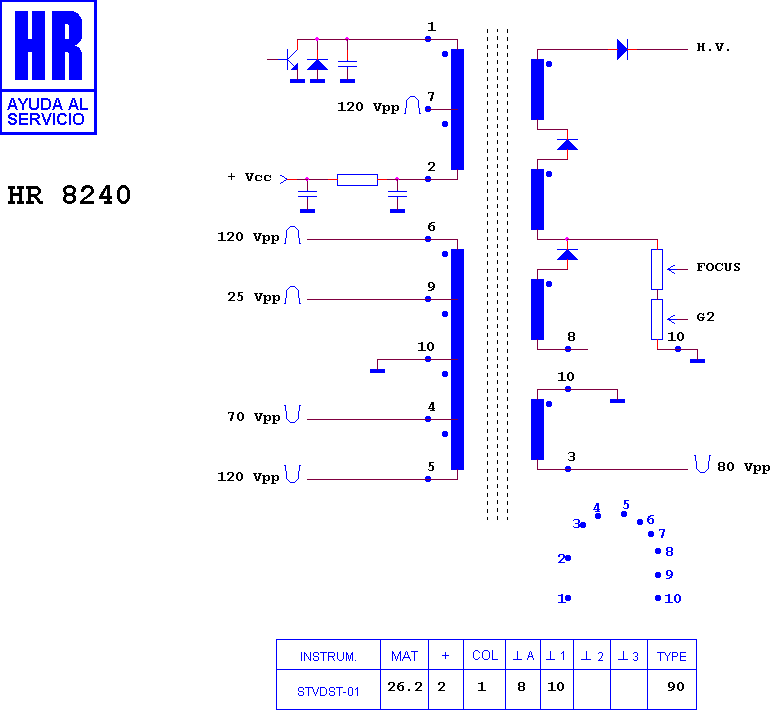

Schematic diagram for HR 8240
schematic

Manufacturer equivalents (31)

140 17090 · 148 87056 · 20660 · 20661 · 20662 · 20663 · 20664 · 3128 138 20660 · 3128 138 20661 · 3128 138 20662 · 4806 140 17090 · 4806 148 87056 · AT 2094/B1 · AT 2094/B1-8 · AT2078/20661 · DV 2094/20661 · DV 2094/20662 · KT 2015 · OV 2094/20661 · OV 2094/20662 · OV 2094/B · OV 2094/B1 · OV2094/B1-1 · OV2094/B1-3 · OV2094/B1-6 · OV2094/B1B · OV2094/B1F · OV2094/B1I · OV2094/B1M · OV2094/D20662 · OV2094/H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80114 · HR 80119

Fitted to (21)

PHILIPS 14 PT 218 A · PHILIPS 14 PT 218 A/78R · PHILIPS 14 PT 228 · PHILIPS 14 PT 314 · PHILIPS 14 PT 3782/59 R · PHILIPS 14 PT 414 · PHILIPS 20 HT 1582 · PHILIPS 20 PT 1482 · PHILIPS 20 PT 224 B/77D · PHILIPS 20 PT 314 · PHILIPS 20 PT 324 · PHILIPS 20 PT 324 A/68R · PHILIPS 20 PT 324 B/77B · PHILIPS 20 PT 3822/69 R · PHILIPS 20 PT 414 · PHILIPS 20 PT 424 · PHILIPS 20 PT 428 A · PHILIPS 20 PT 428 A/78R · PHILIPS 20 PT 524 · PHILIPS CHASIS L 9 SS · PHILIPS CHASIS MCS 4
